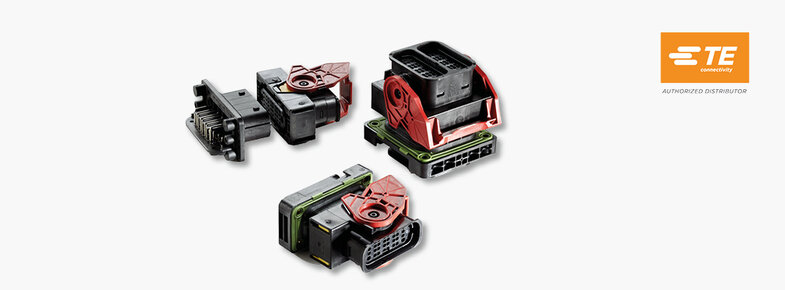

STRIKE Series

High density lever connections

The environmentally sealed STRIKE Series from TE Connectivity offers two different size rugged housings that accept contacts from size 20 to 16 with arrangements of 32 and 64 cavities. The STRIKE connector series features a lever lock system and is designed for heavy duty equipment applications, combined with varying cavity arrangements it offers flexible options for electrical designs.

Product Features:

  • Accepts contact size 16 (13 amps) and 20 (7.5 amps)
  • 14-22 AWG
  • 32 and 64 cavity arrangements
  • In-line, flange or PCB mount
  • Square, thermoplastic housing
  • Lever for mating
  • TPA assures contact alignment and retention

Material Specifications:

  • Flange Seal: Silicone rubber
  • Plug Grommet: Silicone rubber
  • Receptable Threaded Inserts: Brass
  • Shell: Thermoplastic
  • TPA: Thermoplastic
