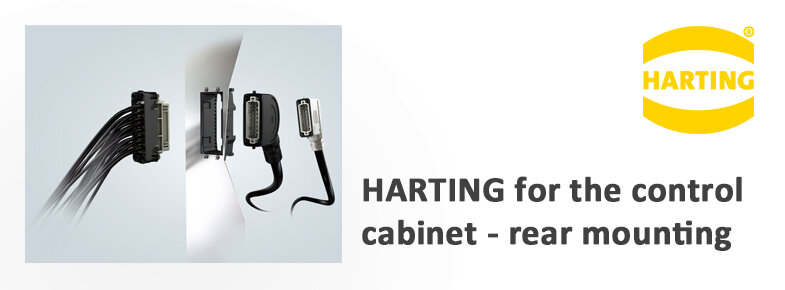

Do you want to plan your control cabinet compactly and wire it faster with innovative solutions? Then Harting's rear mounting may be just the right solution.
Rear mounting allows you to prefabricate your cable harnesses and control cabinet units separately, insert them into the control cabinet housing with one click, and do it easily from inside the control cabinet. This eliminates the need for installers to route cables through the wall cutout and add-on housing before mounting the contact inserts.
Instead, the contact inserts are inserted into a plastic holding frame that snaps into the housing with the help of tabs, so the pre-assembled insulating bodies snap into the bulkhead mounting housing directly from behind using the "click and mate" principle.
Harting offers various housings from the HAN B Rear-Fit, EMC, Yellock, ES Press series as well as the Han-Eco series for the control cabinet wall. For these, you can use monoblocks as usual, the modular system or also the new HAN Domino system.
With the Han-Snap you can plug the already pre-assembled cables directly inside the control cabinet. This is simply installed on the top-hat rail.
The advantages at a glance:
- time and cost savings
- compact and space-saving
- practical and easy handling
- reduction of material and assembly costs
Comparison of rear mounting vs. standard mounting
If you have any further questions about Harting's rear mounting, please do not hesitate to contact your contact persons in the office and they will be pleased to prepare your personal offer.
